INDFOS MP-15

Alias: SWITZER PSM-690-L2H5-1-A

1,595.00 (excl. GST 18%)

INDFOS Refrigeration Pressure Switch / LP-HP Cut-out

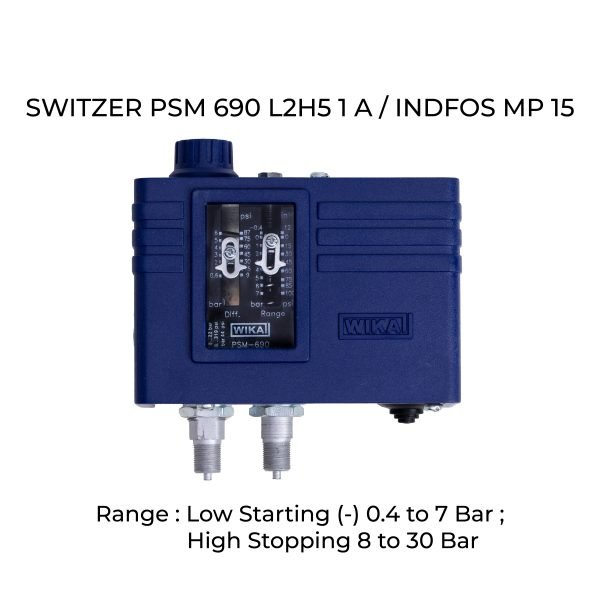

SWITZER PSM 690 L2H5 1 A / INDFOS MP 15

Application/Type

Refrigeration Gasses

Enclosure (Housing) Type

Weather Proof

On/Off Differential Type

Adjustable

Sensor Type

Bellow

Sensor Material

Phosphor Bronze Bellow

Micro Switch

1x SPDT (1 NO + 1 NC)

Micro Switch Rating

AC Rating: 10A 230 V AC

Process Connection

1/4″ Flare Nut

Pressure Range

Low Starting (-) 0.4 to 7 Bar ; High Stopping 8 to 30 Bar

HSN CODE: 90322010

10 in stock

Description

1. Switch Type : Pressure
2. Service : Refrigeration Gasses
3. Reset : Auto
4. Sensor Type : Bellow Copper Alloy
5. Wetted Parts : Free Cutting Steel , Tin Plated
6. Enclosure : IP:33
7. Setting Range : Low Starting (-) 0.4 to 7 Bar ; High Stopping 8 to 30 Bar
8. Permissible Switch Point on Rising Pressure : (-) 0.2 to 6 Bar | 12 to 30 Bar
9. Adjustable Switch Differential : (-) 0.6 to 6 Bar
10. Max Working Pressure : 16 Bar | 32 Bar
11. Process Connection : 1/4″” Flare with Nut
12. Micro Switch : 1x SPDT each for LP and HP
13. Electrical Rating : AC-1: 10A, 230V
14. Electrical Entry : Rubber grommet for cables 6 to 14mm
15. Process Temperature : (-) 20 to 70 Deg C

Alias: SWITZER PSM-690-L2H5-1-A INDFOSMP15 MP15

Additional information

Application

1. Refrigeration Compressors 2. Chillers 3. Driers 4. HVAC
