INDFOS IMVD-10
₹2,125.00 (excl. GST 18%)
INDFOS 2/2 NC, Solenoid Valve 1/2″” with 220V AC Coil

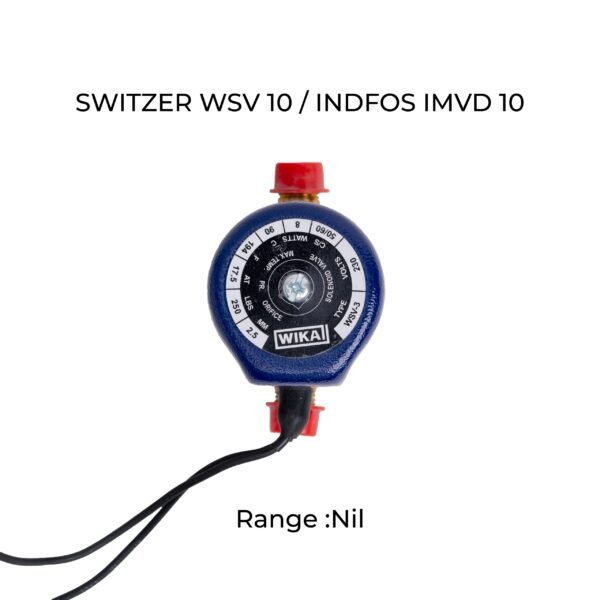

SWITZER WSV 10 / INDFOS IMVD 10
Application/Type
Solenoid Valve
Enclosure (Housing) Type
Nil
On/Off Differential Type
Nil
Sensor Type
Nil
Sensor Material
Nil
Micro Switch
Nil
Micro Switch Rating
Nil
Process Connection
1/2″ BSP (M)
Pressure Range
Nil
HSN Code : 84818030
Disclaimer: Representative image. Actual product may vary based on exact model number.
10 in stock
Description
1. Valve Type : 2/2 Normally Closed (NC)
2. Service : Liquids (Oil / Water) and Gasses (Air / Methane / Town Gas / Butane / Propane)
3. Size : 1/2″” BSP M
4. Oriface : 10mm
5. Operating Pressure : Liquids & Gasses : Max 17 Bar
6. Minimum Operating Differential Pressure : 0.05 Bar
7. Medium Temperature : (-) 10 to 90 Deg C
8. Ambient Temperature for Coil : 40 Deg C
9. Kv Factor : 1.5
10. Test Pressure : 50 Bar
11. Coil Voltage : 220V 50Hz AC (+/-) 10% ; 8W
Alias: SWITZER WSV-10, INDFOSIMVD10 IMVD10
Additional information
Application | 1. Gas Burners 2. Compressed Air System 3. Low Pressure Hydraulics 4. Irrigation Systems |
---|
