INDFOS RT-101 (3M)
₹2,946.00 (excl. GST 18%)
INDFOS Temperature Switch with 3 meter Capillary

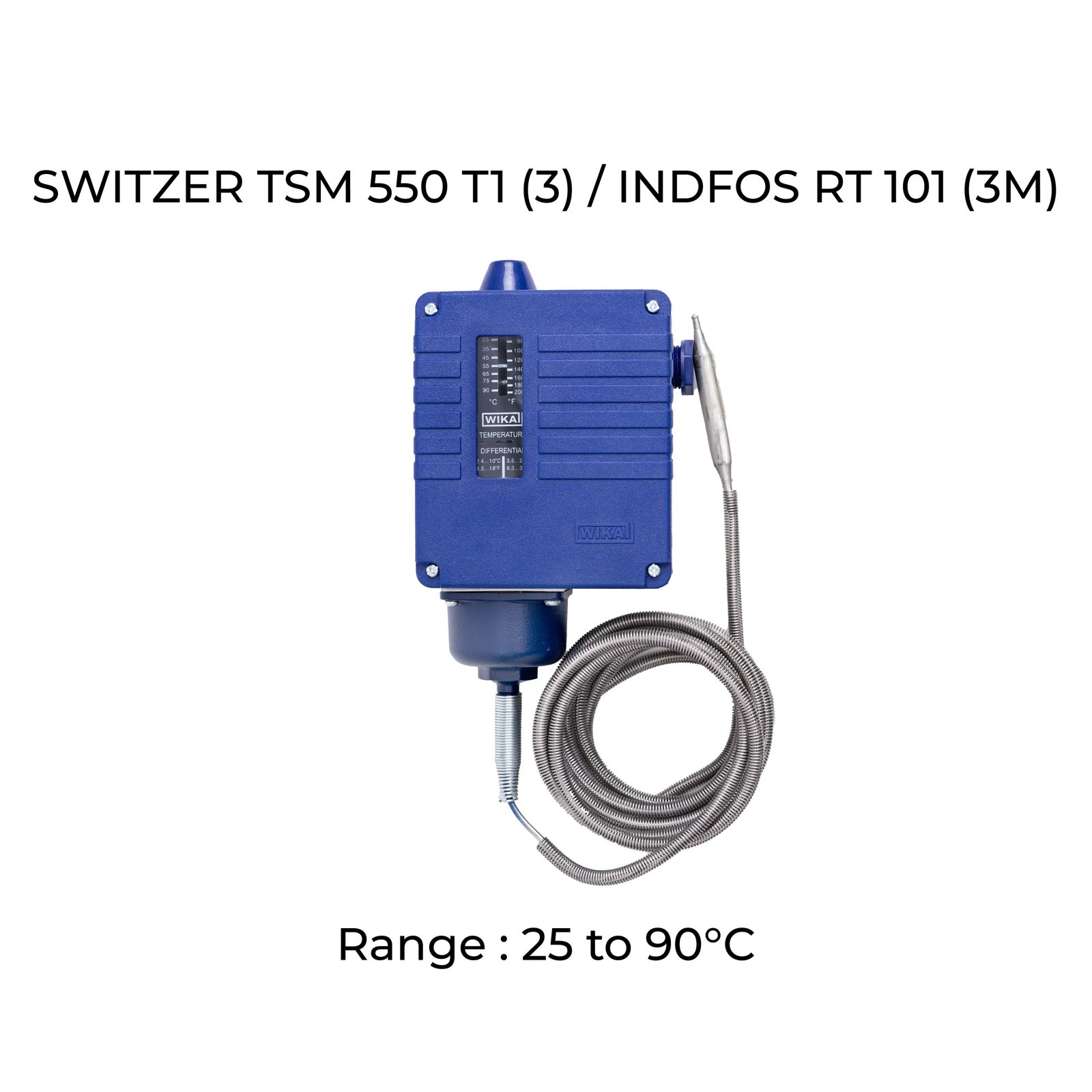

SWITZER TSM 550 T1 (3) / INDFOS RT 101 (3M)
Application/Type
Temperature Switch
Enclosure (Housing) Type
Weather Proof
On/Off Differential Type
Adjustable
Sensor Type
Vapour filled thermostatic element
Sensor Material
Mercury
Micro Switch
1x SPDT (1 NO + 1 NC)
Micro Switch Rating
AC Rating: 10A 380 V AC
Process Connection
1/2″ BSP (M)
Pressure Range
25 to 90 Deg C
HSN Code: 90321090
Disclaimer: Representative image. Actual product may vary based on exact model number.
10 in stock
Description
1. Switch Type : Temperature
2. Sensor Type : Vapour filled thermostatic element
3. Wetted Parts : Tin plated copper bulb and copper capillary with 304 SS armouring on capillary
4. Enclosure : DMC enclosure with painted steel cover, weather-proof to IP:66
5. On/Off Differential : Adjustable
6. Range : 25 to 90 Deg C
7. Adjustable Differential Setting : At Min Temp 2.4 to 10 Deg C
At Max Temp 3.5 to 20 Deg C
8. Max Bulb Temperature : 300 Deg C
9. Charge : Adsorption
10. Micro Switch : 1x SPDT (1 NO + 1 NC)
11. Micro Switch Rating : 10A Res 4A Ind. 380V AC, 12W 220V DC
12. Electrical Entry : 1/2″” NPT (F)
Alias: SWITZER TSM-550-T1-(3),indfosrt-101, rt101
Additional information
Application | 1. Evaporators 2. Heat Exchangers 3. Hydraulic Systems 4. Marine Equipment 5. Heating and Air Conditioning Equipment 6. Turbines and Generators |
---|
