INDFOS MP-5A

Alias: SWITZER PSM-690-H2-2-A

3,185.00 (excl. GST 18%)

INDFOS Refrigeration Pressure Switch / HP Cut-out for Ammonia Service
SWITZER PSM 690 H2 2 A / INDFOS MP 5A

Application/Type

Ammonia

Enclosure (Housing) Type

Weather Proof

On/Off Differential Type

Adjustable

Sensor Type

Bellow

Sensor Material

SS 304

Micro Switch

1x SPDT (1 NO + 1 NC)

Micro Switch Rating

AC Rating: 10A 230 V AC

Process Connection

M10 x 0.75

Pressure Range

6 to 22 Bar

HSN Code : 90322010

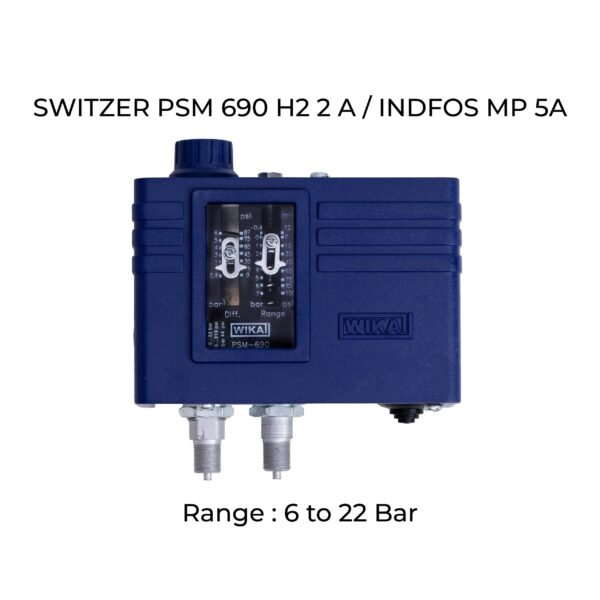

Disclaimer: Representative image. Actual product may vary based on exact model number.

10 in stock

Description

1. Switch Type : Pressure
2. Service : Ammonia
3. Reset : Auto
4. Sensor Type : SS 304
5. Wetted Parts : Free Cutting Steel , Tin Plated
6. Enclosure : IP:33
7. Setting Range : 6 to 22 Bar
8. Permissible Switch Point on Rising Pressure : 8 to 22 Bar
9. Adjustable Switch Differential : 2 to 8 Bar
10. Max Working Pressure : 32 Bar
11. Process Connection : M10 x 0.75
12. Micro Switch : 1x SPDT
13. Electrical Rating : AC-1: 10A, 230V
14. Electrical Entry : Rubber grommet for cables 6 to 14mm
15. Process Temperature : (-) 20 to 70 Deg C

Alias: SWITZER PSM-690-H2-2-A indfos mp5a

Additional information

Application

1. Refrigeration Compressors 2. Chillers 3. Driers 4. HVAC
