INDFOS RT-265-SB
₹1,952.00 (excl. GST 18%)

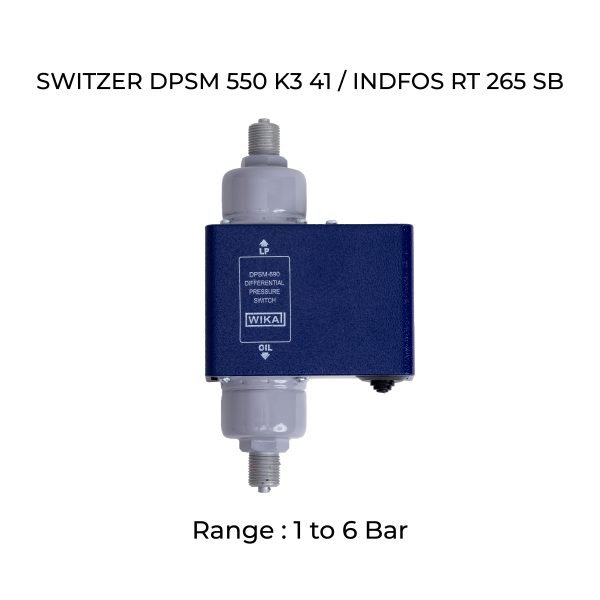

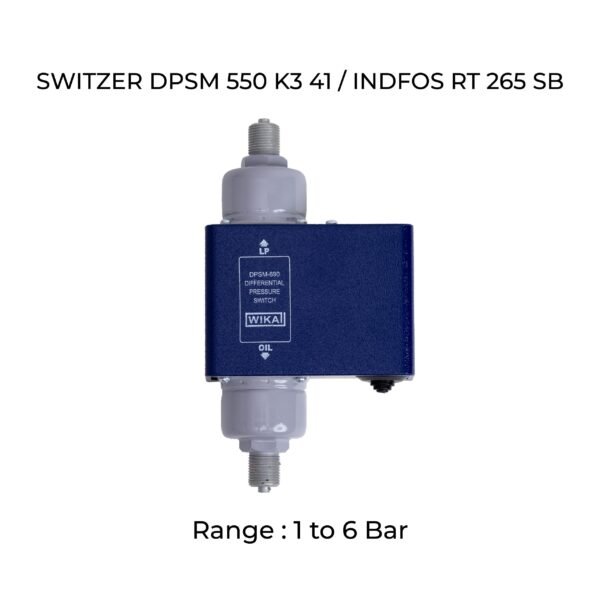

INDFOS Differential Pressure Switch With Weather Proof Enclosure
SWITZER DPSM 550 K3 41 / INDFOS RT 265 SB
Application/Type
Differential Pressure (DP)
Enclosure (Housing) Type
Weather Proof
On/Off Differential Type
Fixed
Sensor Type
Bellow
Sensor Material
SS 304
Micro Switch
1x SPDT (Microswitch)
Micro Switch Rating
AC Rating: 10A 230 V AC
Process Connection
3/8″ BSP (M)
Pressure Range
1 to 6 Bar
HSN Code : 90322090
1 in stock
Description
1. Switch Type : Differential Pressure (DP)
2. Sensor Type : SS 304 Bellows
3. Wetted Parts : Brass
4. Enclosure : DMC enclosure with painted steel cover, weatherproof to IP:66
5. Range : 1 to 6 Bar
6. On/Off Differential : 0.5 Bar Fixed
7. Maximum Pressure : 25 Bar
8. Process Connection : 3/8″” BSP M
9. Micro Switch : 1x SPDT (Microswitch)
10. Micro Switch Rating : 15A 250V AC ; 8A 24V DC Res
11. Electrical Entry : 1/2″” NPT F
12. Process Temperature : 70 Deg C Max
Alias: SWITZER DPSM-550-K3-41, INDFOSRT265SB, RT265SB
Additional information
Application | 1. Used on Pressure Lubricated System across the filter to get an indication or alarm when filter gets choked., 2. Used to stop the pump or energize/deenergize another electric circuit depending upon requirement, 3. Deisgned for use with Oil, Water and Low Temperature Steam, 4. NOT deisgned for refrigerant gases |
---|
