INDFOS RT-265-A

INDFOS RT-265-A

Alias: SWITZER DPSM-550-K3-22

₹2,152.00 (excl. GST 18%)

INDFOS Differential Pressure Switch With Weather Proof Enclosure

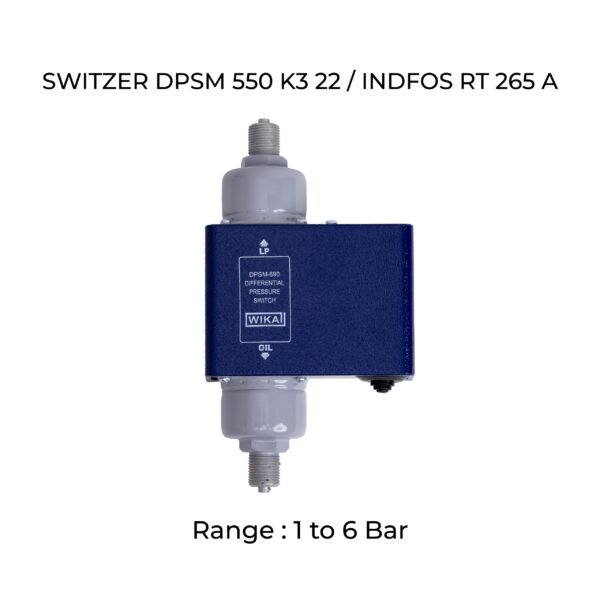

SWITZER DPSM 550 K3 22 / INDFOS RT 265 A

Application/Type

Differential Pressure (DP) – Ammonia

Enclosure (Housing) Type

Weather Proof

On/Off Differential Type

Fixed

Sensor Type

Bellow

Sensor Material

SS 316

Micro Switch

1x SPDT (Microswitch)

Micro Switch Rating

AC Rating: 10A 230 V AC

Process Connection

3/8″ BSP (M)

Pressure Range

1 to 6 Bar

HSN CODE: 90322010

Out of stock

Categories: , ,

Description

1. Switch Type : Differential Pressure (DP)
2. Sensor Type : Phosphor Bronze Bellows
3. Wetted Parts : Brass
4. Enclosure : DMC enclosure with painted steel cover, weatherproof to IP:66
5. Range : 0.2 to 4 Bar
6. On/Off Differential : 0.3 Bar Fixed
7. Maximum Pressure : 15 Bar
8. Process Connection : 3/8″ BSP M
9. Micro Switch : 1x SPDT (Microswitch)
10. Micro Switch Rating : 15A 250V AC ; 8A 24V DC Res
11. Electrical Entry : 1/2″ NPT F
12. Process Temperature : 70 Deg C Max

Alias: SWITZER DPSM-550-K3-22, INDFOSRT265A, RT265A

Additional information

Application

1. Used on Pressure Lubricated System across the filter to get an indication or alarm when filter gets choked., 2. Used to stop the pump or energize/deenergize another electric circuit depending upon requirement, 3. Deisgned for use with Oil, Water and Low Temperature Steam, 4. NOT deisgned for refrigerant gases
