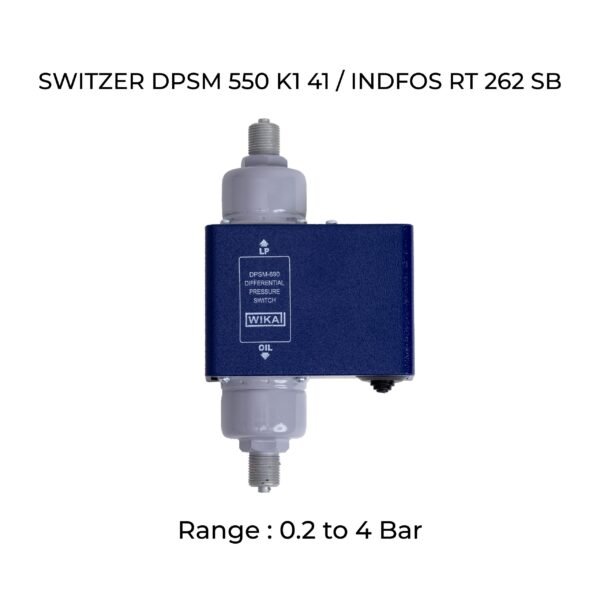

INDFOS RT-262-SB
₹4,152.00 (excl. GST 18%)
Application/Type
Differential Pressure (DP)
Enclosure (Housing) Type
Weather Proof
On/Off Differential Type
Fixed
Sensor Type
Bellow
Sensor Material
SS 304
Micro Switch
1x SPDT (Microswitch)
Micro Switch Rating
AC Rating: 10A 230 V AC
Process Connection
3/8″ BSP (M)
Pressure Range
0.2 to 4 Bar
HSN Code : 90322090
Disclaimer: Representative image. Actual product may vary based on exact model number.
1 in stock
Description
1. Switch Type : Differential Pressure (DP)
2. Sensor Type : SS 304 Bellows
3. Wetted Parts : Brass
4. Enclosure : DMC enclosure with painted steel cover, weatherproof to IP:66
5. Range : 0.2 to 4 Bar
6. On/Off Differential : 0.3 Bar Fixed
7. Maximum Pressure : 25 Bar
8. Process Connection : 3/8″” BSP M
9. Micro Switch : 1x SPDT (Microswitch)
10. Micro Switch Rating : 15A 250V AC ; 8A 24V DC Res
11. Electrical Entry : 1/2″” NPT F
12. Process Temperature : 70 Deg C Max
Additional information
| Application | 1. Used on Pressure Lubricated System across the filter to get an indication or alarm when filter gets choked., 2. Used to stop the pump or energize/deenergize another electric circuit depending upon requirement, 3. Deisgned for use with Oil, Water and Low Temperature Steam, 4. NOT deisgned for refrigerant gases |
|---|
