WIKA PSM-02 (160 Bar)
₹5,952.00 (excl. GST 18%)
WIKA Compact Mechanical Pressure Switch
WIKA PSM 02 (160 Bar)
Application/Type
Pressure Switch
Enclosure (Housing) Type
Weather Proof
On/Off Differential Type
Adjustable
Sensor Type
Piston
Sensor Material
SS 303
Micro Switch
1x SPDT (1 NO + 1 NC)
Micro Switch Rating
AC Rating: 4A 250 V AC
Process Connection
1/4″ BSP (M)
Pressure Range
10 to 160 Bar
HSN Code: 90262000

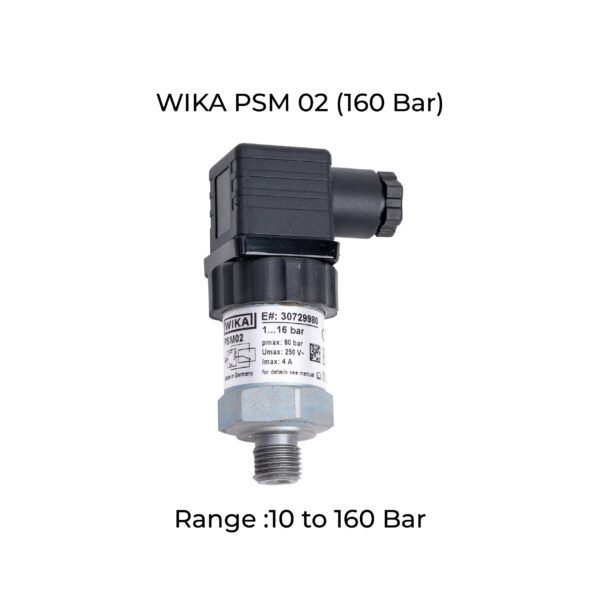

Disclaimer: Representative image. Actual product may vary based on exact model number.
5 in stock
Description
1. Switch Type : Pressure
2. Sensor Type : NBR Diaphragm
3. Wetted Parts : Galvanized Steel
4. Enclosure : Weatherproof to IP:65
5. On/Off Differential : Adjustable (0.1 Bar + 5 to 20% of switch point)
6. Range : 10 to 160 Bar
7. Maximum Working Pressure : 60 Bar
8. Process Connection : 1/4″” BSP (M)
9. Micro Switch : 1x SPDT (1 NO + 1 NC)
10. Micro Switch Rating : 4A 250 V AC
11. Electrical Entry : DIN Angular Connector
12. Maximum Fluid Temperature : 80 Deg C
Additional information
| Application | 1. Hydraulic and Mobile Hydraulics 2. Pneumatics 3. Mobile Working Machines 4. Plastic Injection Moulding Machines |
|---|---|
| Body Material (Casing) | |
| Dial Size | |
| Entry Type | |
| Filling | |
| Internals (Measuring System) | |
| Range | |
| alias | |
| Application/Type | Pressure Switch |
| Enclosure (Housing) Type | |
| Micro Switch | 1x SPDT (1 NO + 1 NC) |
| Micro Switch Rating | AC Rating: 4A 250 V AC |
| On/Off Differential Type | Fixed |
| Pressure Range | 10 to 160 Bar |
| Process Connection | 1/4_ BSP (M) |
| Range | 10 to 160 Bar |
| Sensor Material | NBR |
| Sensor Type | Diaphragm |
