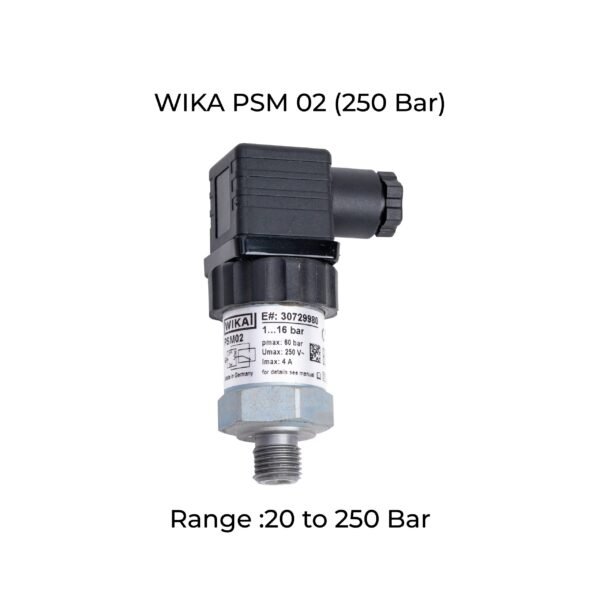

WIKA PSM-02 (250 Bar)

5,952.00 (excl. GST 18%)

WIKA Compact Mechanical Pressure Switch
WIKA PSM 02 (250 Bar)

Application/Type

Pressure Switch

Enclosure (Housing) Type

Weather Proof

On/Off Differential Type

Adjustable

Sensor Type

Piston

Sensor Material

SS 303

Micro Switch

1x SPDT (1 NO + 1 NC)

Micro Switch Rating

AC Rating: 4A 250 V AC

Process Connection

1/4″ BSP (M)

Pressure Range

20 to 250 Bar

HSN Code: 90262000
Disclaimer: Representative image. Actual product may vary based on exact model number.

5 in stock

Description

1. Switch Type : Pressure
2. Sensor Type : NBR Diaphragm
3. Wetted Parts : Galvanised Steel
4. Enclosure : WeatherProof to IP:65
5. On/Off Differential : Adjustable (0.1 Bar + 5 to 20% of switch point)
6. Range : 20 to 250 Bar
7. Maximum Working Pressure : 60 Bar
8. Process Connection : 1/4″” BSP (M)
9. Micro Switch : 1x SPDT (1 NO + 1 NC)
10. Micro Switch Rating : 4A 250 V AC
11. Electrical Entry : DIN Angular Connector
12. Maximum Fluid Temperature : 80 Deg C

PSM02

Additional information

Application

1. Hydraulic and Mobile Hydraulics 2. Pneumatics 3. Mobile Working Machines 4. Plastic Injection Moulding Machines
