SWITZER PS01-F1-32-B37-F-D-AP4
₹8,421.00 (excl. GST 18%)

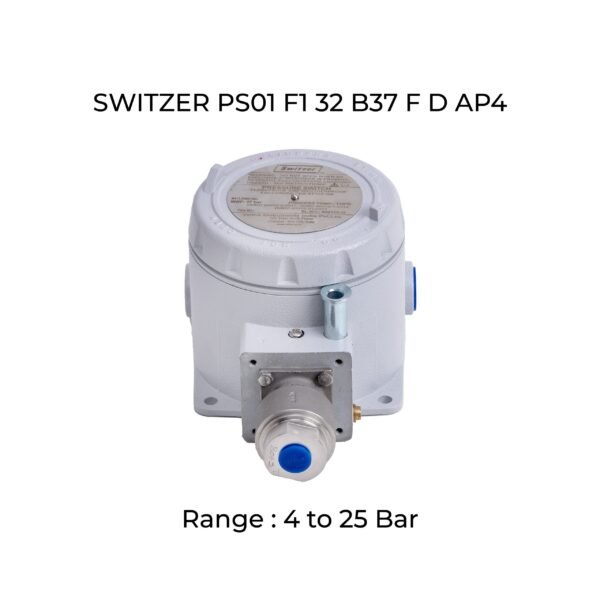

SWITZER Diaphragm Type Pressure Switch With Flame Proof Enclosure
SWITZER PS01 F1 32 B37 F D AP4 / PS01 F1 32 B37 F D APC OT
Application/Type
Pressure Switch
Enclosure (Housing) Type
Flame Proof
On/Off Differential Type
Fixed
Sensor Type
Diaphragm
Sensor Material
SS 316
Micro Switch
1x SPDT (1 NO + 1 NC)
Micro Switch Rating
AC Rating: 15A 250 V AC
Process Connection
1/4″ NPT (F)
Pressure Range
4 to 25 Bar
HSN Code: 90322010
2 in stock
Description
1. Switch Type: Pressure
2. Sensor Type: SS 316 L Diaphragm
3. Wetted Parts: SS 316
4. Enclosure: Aluminium Pressure Die Cast, Weatherproof And Flameproof To Gr.Iia, Iib Or Iic
5. On/Off Differential: Fixed
6. Range: 4 to 25 Bar
7. Maximum Working Pressure: 110 Bar
8. Process Connection: 1/4″ NPT (F)
9. Micro Switch : 1x SPDT (1 NO + 1 NC)
10. Micro Switch Rating : AC Rating — 15A, 250V / DC Rating — Resistive : 0.4A 110V / 0.2A 220V / 2A 24V
11. Electrical Entry: 1/2″ NPT (F)
12. Maximum Fluid Temperature: 150 Deg C
Additional information
| Application | 1. The instrument is suitable for oil, gas, power, steel and petrochemical industries 2. Hydraulics and pneumatics 3. Steel 4. Power 5. Special Purpose Machine |
|---|
