INDFOS IPSD-50

Alias: SWITZER DPSM-690-A4

2,621.00 (excl. GST 18%)

INDFOS Differential Pressure Switch With Weather Proof Enclosure

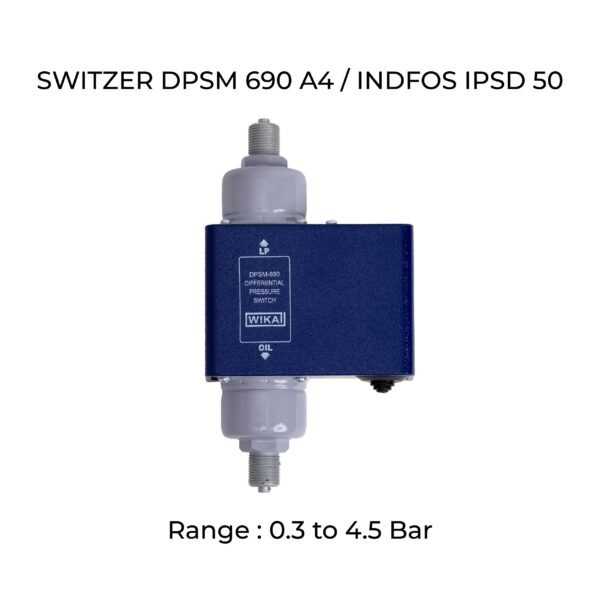

SWITZER DPSM 690 A4 / INDFOS IPSD 50

Application/Type

Differential Pressure (DP)

Enclosure (Housing) Type

Weather Proof

On/Off Differential Type

Fixed

Sensor Type

Bellow

Sensor Material

SS 304

Micro Switch

1x SPDT (Microswitch)

Micro Switch Rating

AC Rating: 10A 230 V AC

Process Connection

3/8″ BSP (M)

Pressure Range

0.3 to 4.5 Bar

HSN Code : 90322090
Disclaimer: Representative image. Actual product may vary based on exact model number.

50 in stock

Description

1. Switch Type : Differential Pressure (DP)
2. Sensor Type : Stainless Steel Bellows
3. Wetted Parts : MS
4. Enclosure : Painted Mild Steel to IP:33
5. Range : 0.3 to 4.5 Bar
6. On/Off Differential : 0.2 Bar Fixed
7. Maximum Pressure : 22 Bar
8. Process Connection : 3/8″” BSP M
9. Micro Switch : 1x SPDT (Microswitch)
10. Micro Switch Rating : AC-1: 10A, 230V
11. Electrical Entry : Suitable for 6 to 14mm dia Cable
12. Process Temperature : 100 Deg C Max

Alias: SWITZER DPSM-690-A4, INDFOSIPSD50, IPSD50

Additional information

Application

1. Used on Pressure Lubricated System across the filter to get an indication or alarm when filter gets choked., 2. Used to stop the pump or energize/deenergize another electric circuit depending upon requirement, 3. Deisgned for use with Oil, Water and Low Temperature Steam, 4. NOT deisgned for refrigerant gases
