HomeShopElectronic Pressure SwitchWIKA PSD-4-C-Z-BV410-86LZ-WW-ZZ

WIKA PSD-4-C-Z-BV410-86LZ-WW-ZZ

26,821.00 (excl. GST 18%)

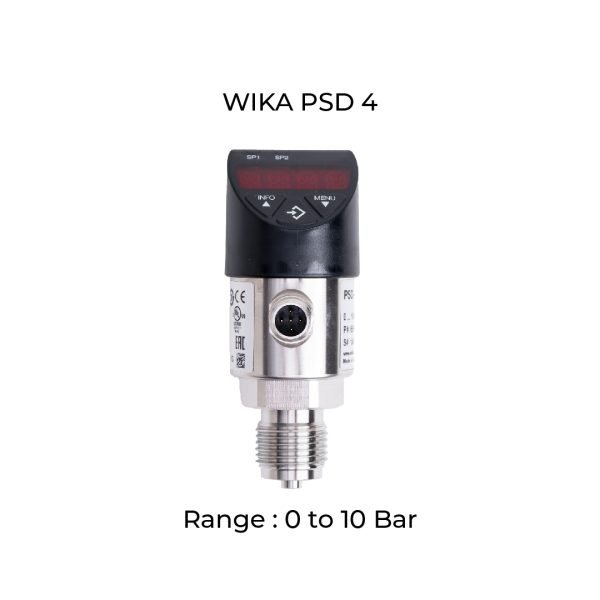

WIKA Electronic Pressure Switch, Range: 0 to 10 Bar, 1/2″ Flush Diaphragm with 2 Switching Outpts (PNP/NPN)
WIKA PSD 4

Application/Type

Electronic Pressure Switch

Enclosure (Housing) Type

Weather Proof

On/Off Differential Type

Adjustable

Sensor Type

Nil

Sensor Material

SS 316

Micro Switch

2 x PNP/NPN Freely Selectable

Micro Switch Rating

AC Rating: 5A 250 V AC

Process Connection

1/2″ NPT (M)

Pressure Range

0 to 10 Bar

HSN Code: 90262000

1 in stock

Description

1. Range : 0 to 10 Bar
2. Medium Temperature : -20 to 85 Deg C
3. Process Connection : G 1/2 Flush Diaphragm
4. Circular Connector : M12 x 1 (5 pin)
5. Switch Output : 2 independent PNP/NPN selectable
6. Analog Output : Current 4 to 20 mA
7. Accuracy : ? ±0.5% of span
8. Wetted Parts : SS 316L
9. O Ring : FPM/FKM
10. Ingress Protecttion : IP65
11. Display : 14 segment LED, red, 4-digit, 9mm character size, Display can be turned electronically by 180?
12. Supply : DC 15 ….. 35V

WIKA PSD4CZBV41086LZWWZZ

Additional information

Application

1. Hydraulics and Pneumatics 2. Pumps and Compressors 3. Special Purpose Machine Building 4. Water Treatment Plant

On/Off Differential Type

Adjustable
