WIKA PSD-4-C-Z-BV316-GDLZ-WW-ZZ

23,521.00 (excl. GST 18%)

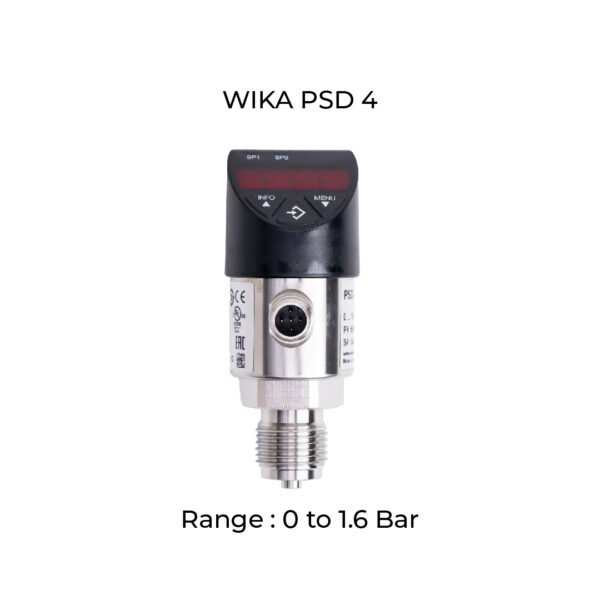

WIKA Electronic Pressure Switch, Range: 0 to 1.6 Bar, 1/2″” BSP Connection with 2 Switching Outputs (PNP/NPN)
WIKA PSD 4

Application/Type

Electronic Pressure Switch

Enclosure (Housing) Type

Weather Proof

On/Off Differential Type

Adjustable

Sensor Type

Nil

Sensor Material

SS 316

Micro Switch

2 x PNP/NPN Freely Selectable

Micro Switch Rating

Nil

Process Connection

1/2″ BSP (M)

Pressure Range

0 to 1.6 Bar

HSN CODE: 90262000

1 in stock

Description

1. Range : 0 to 1.6 Bar
2. Medium Temperature : -20 to 85 Deg C
3. Process Connection : G 1/2 B
4. Circular Connector : M12 x 1 (5 pin)
5. Switch Output : 2 independent PNP/NPN selectable
6. Analog Output : Current 4 to 20 mA
7. Accuracy : ? ±0.5% of span
8. Wetted Parts : SS 316L
9. O Ring : FPM/FKM
10. Ingress Protecttion : IP65
11. Display : 14 segment LED, red, 4-digit, 9mm character size, Display can be turned electronically by 180?
12. Supply : DC 15 ….. 35V

Additional information

Application

1. Machine Tools 2. Hydraulics and Pneumatics 3. Pumps and Compressors 4. Special Purpose Machine Building
