WIKA Pressure Gauge : Body: SS with Brass Internals , Dial Size: 63mm , Range: 0 – 400 KG/CM²

Alias: WIKA 213.53.63.Bottom (400 KG)

797.00 (excl. GST 18%)

WIKA SS Body Brass Internals Pressure Guage 2.1/2″ Dial ; Range: 0 to 400 KG/CM² ; 1/4″ BSP Bottom Connection

Body Material (Casing)

SS Body Brass Internals

Internals (Measuring System)

Copper Alloy

Filing

Glycerine

Entry Type

Bottom Connection

Dial Size

2.1/2″ (63 mm)

Range

0 – 400 KG/CM²

HSN Code – 90262000

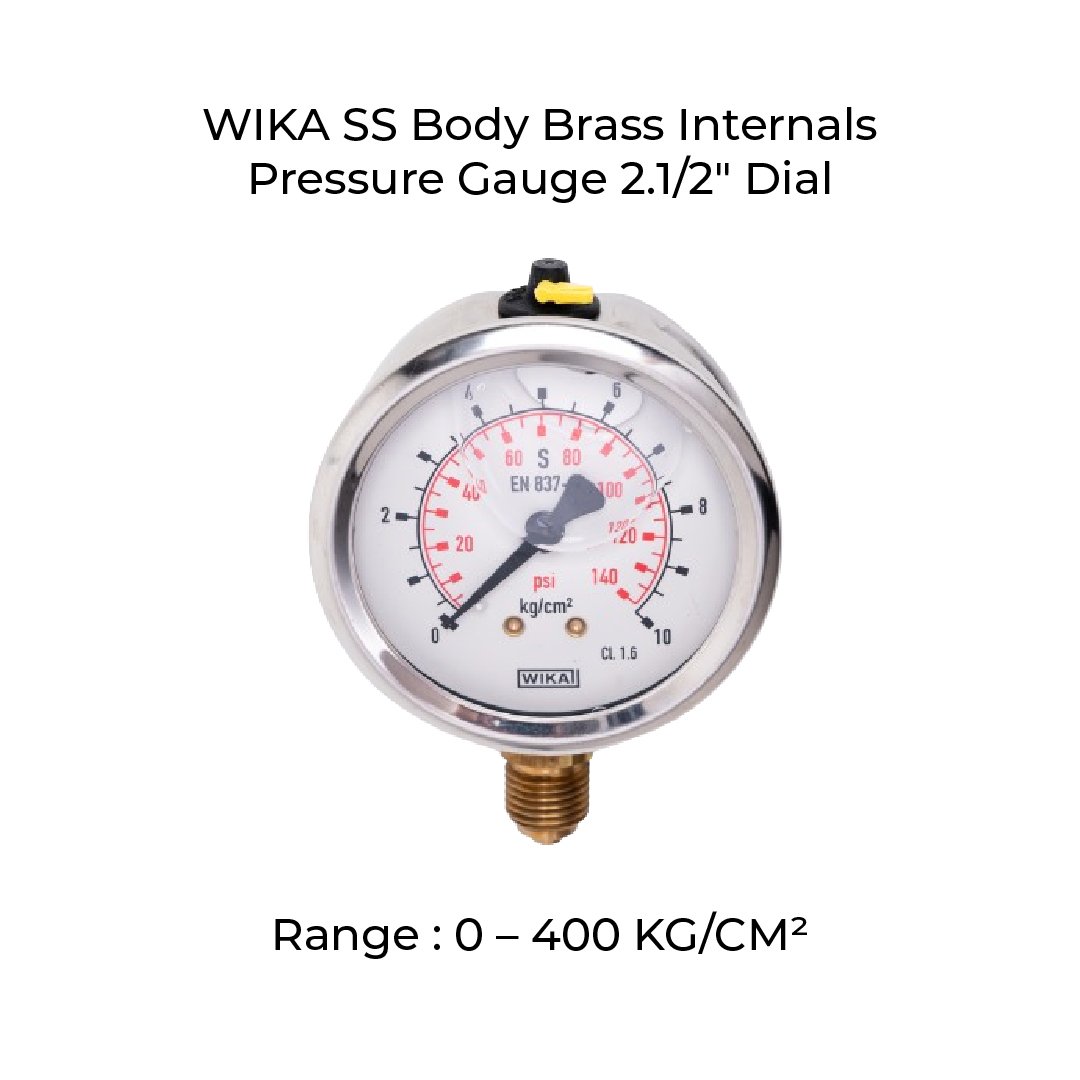

Disclaimer: Representative image. Actual product may vary based on exact model number.

10 in stock

Description

1. Dial (Nominal) Size : 63 mm
2. Range : 0 to 400 KG/CM²
3. Connection : 1/4″ BSP Bottom Connection
4. Measuring System : Copper alloy
5. Case : SS with Case vent
6. Accuracy : 1.6% of FS
7. Filling : Glycerin
8. Movement : Copper alloy
9. Window : Clear Plastic
10. Dial : White Plastic
11. Pointer : Black Plastic
12. Front Flange : No
