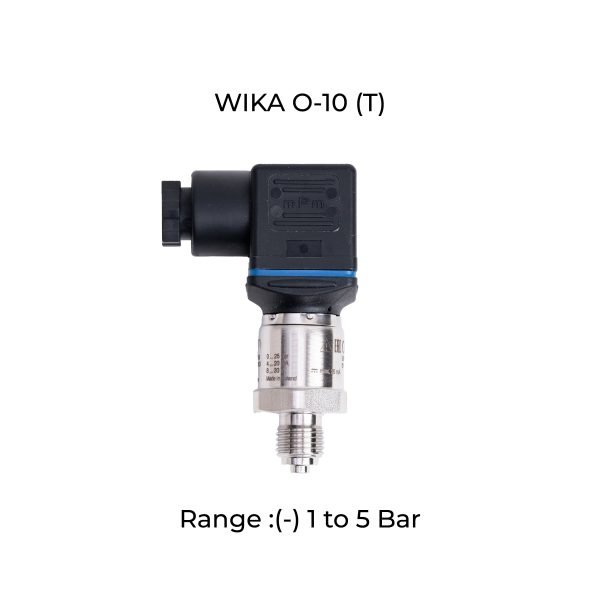

WIKA O-10 (T) ((-)1 to5 Bar)
₹5,353.00 (excl. GST 18%)
WIKA Pressure Transmitter Range (-) 1 to 5 Bar
WIKA O-10 (T)
Application/Type
Pressure Transmitter
Enclosure (Housing) Type
Nil
On/Off Differential Type
Nil
Sensor Type
Nil
Sensor Material
Nil
Micro Switch
Nil
Micro Switch Rating
Nil
Process Connection
1/4″ BSP (M)
Pressure Range
(-) 1 to 5 Bar
HSN Code: 90262000
Disclaimer: Representative image. Actual product may vary based on exact model number.
7 in stock
Description
1. Output : 4-20mA
2. Range : (-) 1 to (+) 5 Bar
3. Wiring : 2 wire
4. Power Supply : 8-30 V DC
5. Linearity : 0.5% of span BFSL
6. Process Connection : 1/4″” BSP (M)
7. Body & Wetted Parts : SS316L
8. Case Protection : IP65
9. Medium Temperature : (-) 30 to (+) 100 deg C
10. Electrical Connection : Angular Connector Form A
Additional information
| Application | 1. Hydraulics and Pneumatics 2. Pumps and Compressors 3. Machine Building 4. Building Services |
|---|
