SWITZER PS01-F1-32-B42-F-5-AP4

Alias: SWITZER PS01-F1-32-B42-F-5-AWC

6,880.00 (excl. GST 18%)

SWITZER Diaphragm Type Pressure Switch With Flame Proof Enclosure
SWITZER PS01 F1 32 B42 F 5 AP4

Application/Type

Pressure Switch

Enclosure (Housing) Type

Flame Proof

On/Off Differential Type

Fixed

Sensor Type

Diaphragm

Sensor Material

SS 316

Micro Switch

1x SPDT (1 NO + 1 NC)

Micro Switch Rating

AC Rating: 5A 250 V AC

Process Connection

1/4″ NPT (F)

Pressure Range

0.25 to 1.6 Bar

HSN Code : 90322010

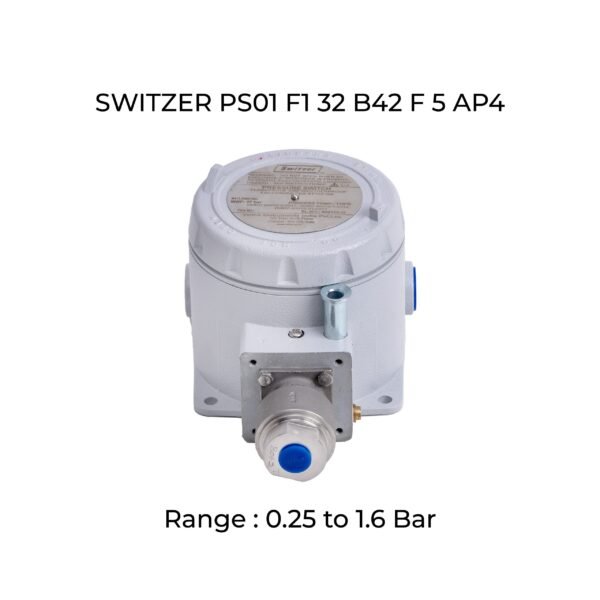

Disclaimer: Representative image. Actual product may vary based on exact model number.

5 in stock

Description

1. Switch Type: Pressure
2. Sensor Type: SS 316 L Diaphragm
3. Wetted Parts: SS 316
4. Enclosure: Aluminium Pressure Die Cast, Weatherproof And Flameproof To Gr.Iia, Iib Or Iic
5. On/Off Differential: Fixed
6. Range: 0.25 to 1.6 Bar
7. Maximum Working Pressure: 27 Bar
8. Process Connection: 1/4″ NPT (F)
9. Micro Switch : 1x SPDT (1 NO + 1 NC)
10. Micro Switch Rating : AC Rating — 5A, 250V / DC Rating — Resistive : 0.4A 110V / 0.2A 220V / 2A 24V
11. Electrical Entry: 1/2″ NPT (F)
12. Maximum Fluid Temperature: 110 Deg C

SWITZER PS01-F1-32-B42-F-5-AWC, SWITZERPS01F132B42F5AP4, SWITZERPS01F132B42F5AP4

Additional information

Application

1. Hydraulics 2. Pneumatics 3. Fire Fighting 4. Pumps Control 5. Compressors Control 6. Power 7. Special Purpose Machines
