SWITZER GH-903-2-B01-33

Alias: SWITZER GH-903-2-V-33

5,443.00 (excl. GST 18%)

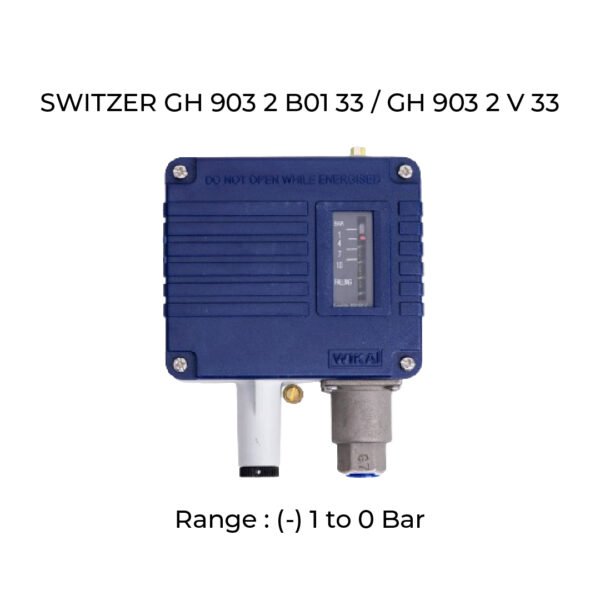

SWITZER Bellow Type Pressure Switch With Weather Proof Enclosure
SWITZER GH 903 2 B01 33 / GH 903 2 V 33

Application/Type

Pressure Switch

Enclosure (Housing) Type

Weather Proof

On/Off Differential Type

Adjustable

Sensor Type

Bellow

Sensor Material

SS 316

Micro Switch

2x SPDT (2 NO + 2 NC)

Micro Switch Rating

AC Rating: 15A 250 V AC

Process Connection

1/4″ NPT (F)

Pressure Range

(-) 1 to 0 Bar

HSN Code : 90322010

2 in stock

Description

1. Switch Type : Pressure
2. Sensor Type : SS 316 L Bellow
3. Wetted Parts : SS 316
4. Enclosure : Aluminium Pressure Die Cast Weatherproof To Ip:66
5. On/Off Differential : Wideband Adjustable : 15 To 60%
6. Range : (-) 1 to 0 Bar
7. Maximum Working Pressure : 4 Bar
8. Process Connection : 1/4″ NPT (F)
9. Micro Switch : 2x SPDT (2 NO + 2 NC)
10. Micro Switch Rating : AC Rating — 15A, 250V / DC Rating — Resistive : 0.5A 110V / 0.25A 220V / 8A 24V
11. Electrical Entry : 3/4″ ET Nylon Cable gland for 8 mm OD cable
12. Maximum Fluid Temperature : 170 Deg C

Alias: SWITZER GH-903-2-V-33, SWITZERGH9032V33, GH9032V33



Additional information

Application

1. The instrument is suitable for air, gas, water, steam, oil and several other chemicals which are compatible to Copper alloys and Stainless Steel, 2. Style GH Pressure Die Cast Aluminium housing is best suited for harsh and outdoor mountings
