SWITZER GH-901-1-B32-3
₹2,875.00 (excl. GST 18%)
SWITZER Bellow Type Pressure Switch With Weather Proof Enclosure

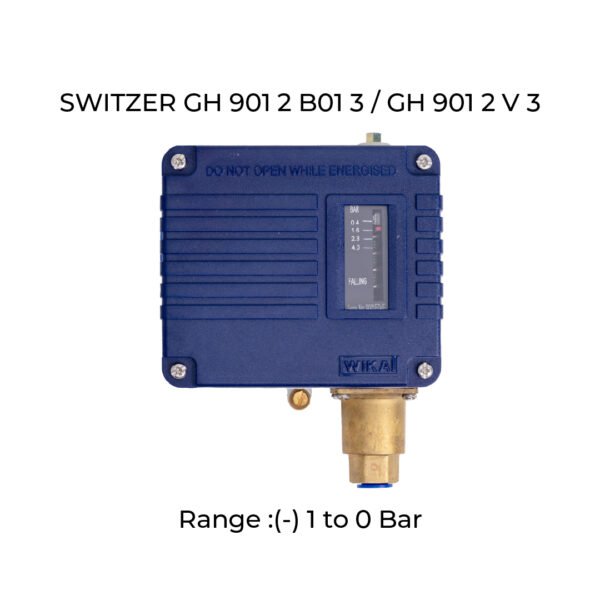

SWITZER GH 901 2 B01 3 / GH 901 2 V 3
Application/Type
Pressure Switch
Enclosure (Housing) Type
Weather Proof
On/Off Differential Type
Fixed
Sensor Type
Bellow
Sensor Material
Phosphor Bronze Bellow
Micro Switch
1x SPDT (1 NO + 1 NC)
Micro Switch Rating
AC Rating: 4A 250 V AC
Process Connection
1/4″ NPT (F)
Pressure Range
(-) 1 to 0 Bar
HSN Code: 90322010
Disclaimer: Representative image. Actual product may vary based on exact model number.
5 in stock
Description
1. Switch Type : Pressure
2. Sensor Type : Phosphor Bronze Bellow
3. Wetted Parts : Brass
4. Enclosure : Aluminium Pressure Die Cast Weatherproof To Ip:66
5. On/Off Differential : Fixed : Within 6%
6. Range : 0.7 to 7 Bar
7. Maximum Working Pressure : 18 Bar
8. Process Connection : 1/4″ NPT (F)
9. Micro Switch : 1x SPDT (1 NO + 1 NC)
10. Micro Switch Rating : AC Rating — 15A, 250V / DC Rating — Resistive : 0.5A 110V / 0.25A 220V / 8A 24V
11. Electrical Entry : 3/4″ ET Nylon Cable gland for 8 mm OD cable
12. Maximum Fluid Temperature : 110 Deg C
Additional information
| Application | 1. The instrument is suitable for air, gas, water, steam, oil and several other chemicals which are compatible to Copper alloys and Stainless Steel, 2. Style GH Pressure Die Cast Aluminium housing is best suited for harsh and outdoor mountings |
|---|
