SWITZER DM-601-B30-S1-3-A
₹3,480.00 (excl. GST 18%)

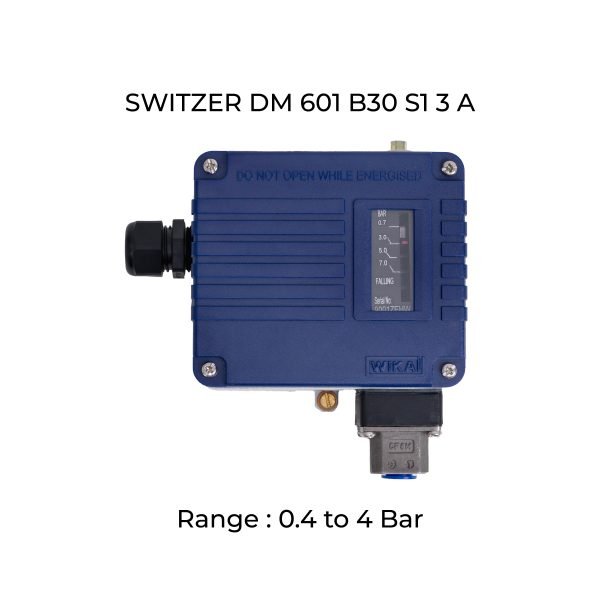

SWITZER Diaphragm Type Pressure Switch With Weather Proof Enclosure
SWITZER DM 601 B30 S1 3 A
Application/Type
Pressure Switch
Enclosure (Housing) Type
Weather Proof
On/Off Differential Type
Fixed
Sensor Type
Diaphragm
Sensor Material
SS 316
Micro Switch
1x SPDT (1 NO + 1 NC)
Micro Switch Rating
AC Rating: 15A 250 V AC
Process Connection
1/4″ NPT (F)
Pressure Range
0.4 to 4 Bar
HSN Code: 90322010
Disclaimer: Representative image. Actual product may vary based on exact model number.
5 in stock
Already sold: 1
Description
1. Switch Type: Pressure
2. Sensor Type: SS 316 L Diaphragm
3. Wetted Parts: SS 316
4. Enclosure: Aluminium Pressure Die Cast Weatherproof To Ip:66
5. On/Off Differential: Fixed Within 6 – 10% Of F.S.R.
6. Range: 0.2 to 1.6 Bar
7. Maximum Working Pressure: 60 Bar
8. Process Connection: 1/4″ NPT (F)
9. Micro Switch : 1x SPDT (1 NO + 1 NC)
10. Micro Switch Rating : AC Rating — 15A, 250V / DC Rating — Resistive : 0.5A 110V / 0.25A 220V / 8A 24V
11. Electrical Entry: 1/2″ NPT (F)
12. Maximum Fluid Temperature: 170 Deg C
Additional information
| Application | 1. Hydraulics 2. Pneumatics 3. Fire Fighting 4. Pumps Control 5. Compressors Control 6. Power 7. Special Purpose Machines |
|---|---|
| Body Material (Casing) | |
| Dial Size | |
| Entry Type | |
| Filling | |
| Internals (Measuring System) | |
| Range | |
| alias | |
| Application/Type | Pressure Switch |
| Enclosure (Housing) Type | |
| Micro Switch | 1x SPDT (1 NO + 1 NC) |
| Micro Switch Rating | AC Rating: 15A 250 V AC |
| On/Off Differential Type | Fixed |
| Pressure Range | 0.4 to 4 Bar |
| Process Connection | 1/4_ NPT (F) |
| Range | 0.4 to 4 Bar |
| Sensor Material | SS 316 |
| Sensor Type | Diaphragm |
