INDFOS RT-110-PB

Alias: SWITZER PSM-550-B2-11-CD

1,852.00 (excl. GST 18%)

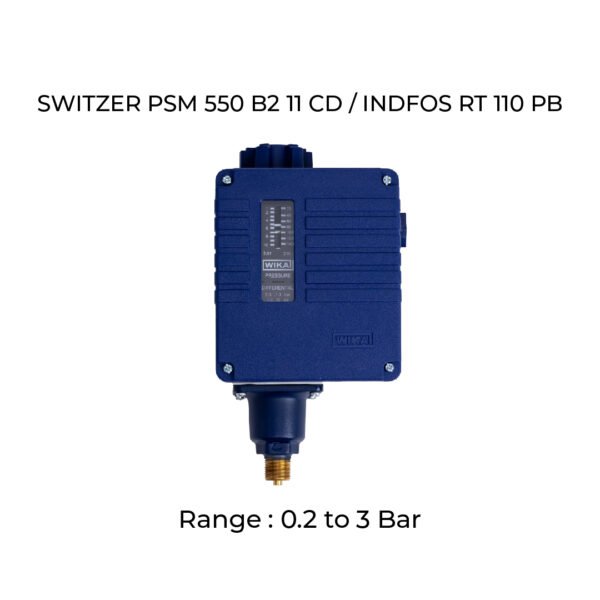

INDFOS Bellow Type Pressure Switch With Weather Proof Enclosure
SWITZER PSM 550 B2 11 CD / INDFOS RT 110 PB

Application/Type

Pressure Switch

Enclosure (Housing) Type

Weather Proof

On/Off Differential Type

Adjustable

Sensor Type

Bellow



Sensor Material

Phosphor Bronze Bellow

Micro Switch

1x SPDT (1 NO + 1 NC)

Micro Switch Rating

AC Rating: 4A 250 V AC

Process Connection

3/8″ BSP (M)

Pressure Range

0.2 to 3 Bar

HSN Code : 90322090

50 in stock

Description

1. Switch Type : Pressure
2. Sensor Type : Phosphor Bronze Bellows
3. Wetted Parts : Brass
4. Enclosure : Cover: Abs Plastic ; Housing: Polyester ; Gasket Nitrile Weatherproof To Ip:67
5. On/Off Differential : Adjustable : 0.12 To 0.75 Bar
6. Range : 0.2 to 3 Bar
7. Maximum Working Pressure : 7 Bar
8. Process Connection : 3/8″ BSP (M)
9. Micro Switch : 1x SPDT (1 NO + 1 NC)
10. Micro Switch Rating : AC Rating — 15A, 250V / DC Rating — Resistive : 0.5A 110V / 0.25A 220V / 8A 24V
11. Electrical Entry : 1/2″ NPT (F)
12. Maximum Fluid Temperature : 70 Deg C

SWITZER PSM-550-B2-11-CD, RT110PB

Additional information

Application

1. The instrument is suitable for applications where shock and vibrations are present. The sensing element is suitable for a variety of process fluids 2. Pumps, filters 3. Vaccum brakes, 4. Lubrication system , hydraulic system 5. HVAC 6. Circuit brakers 7. Heat exchangers, water treatment
