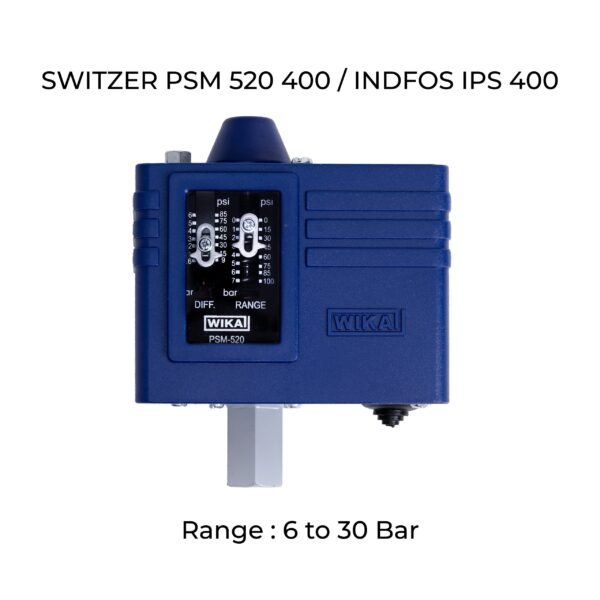

INDFOS IPS-400

Alias: SWITZER PSM-520-400

872.00 (excl. GST 18%)

Application/Type:

Pressure Switch

Enclosure (Housing) Type:

Weather Proof

Off Differential Type:

Adjustable

Sensor Type:

Bellow

Sensor Material:

Phosphor Bronze Bellow

Micro Switch:

1x SPDT (1 NO + 1 NC)

Micro Switch Rating:

AC Rating: 10A 230 V AC

Process Connection:

1/4″ BSP (F)

Pressure Range:

6 to 30 Bar

HSN Code: 90322090
Disclaimer: Representative image. Actual product may vary based on exact model number.

50 in stock

Description

1. Switch Type : Pressure
2. Sensor Type : Phosphor Bronze Bellows
3. Wetted Parts : Free Cutting Steel
4. Enclosure : Cover: Powder Coated Steel ; Housing: Galvanised Steel Weatherproof To Ip:33
5. On/Off Differential : Adjustable: 108 To 215 Psi
6. Range : 85 to 425 PSI
7. Maximum Working Pressure : 450 PSI
8. Process Connection : 1/4″ BSP (F)
9. Micro Switch : 1x SPDT (1 NO + 1 NC)
10. Micro Switch Rating : AC Rating — 10A, 230V
11. Electrical Entry : Rubber grommet suitable for 6 to 14mm dia cable
12. Maximum Fluid Temperature : 70 Deg C

Alias: SWITZER PSM-520-400,PSM520400, PSM-520400, PSM520-400 ips400 indfosips400

Additional information

Application

1.The instrument is suitable for oil, water, air, steam and other non-corrosive pressure media 2. Automatic start/stop of pump, 3. Water treatment filtration system 4. Chillers (water/air cooled) 5. Lubrication oil skids
